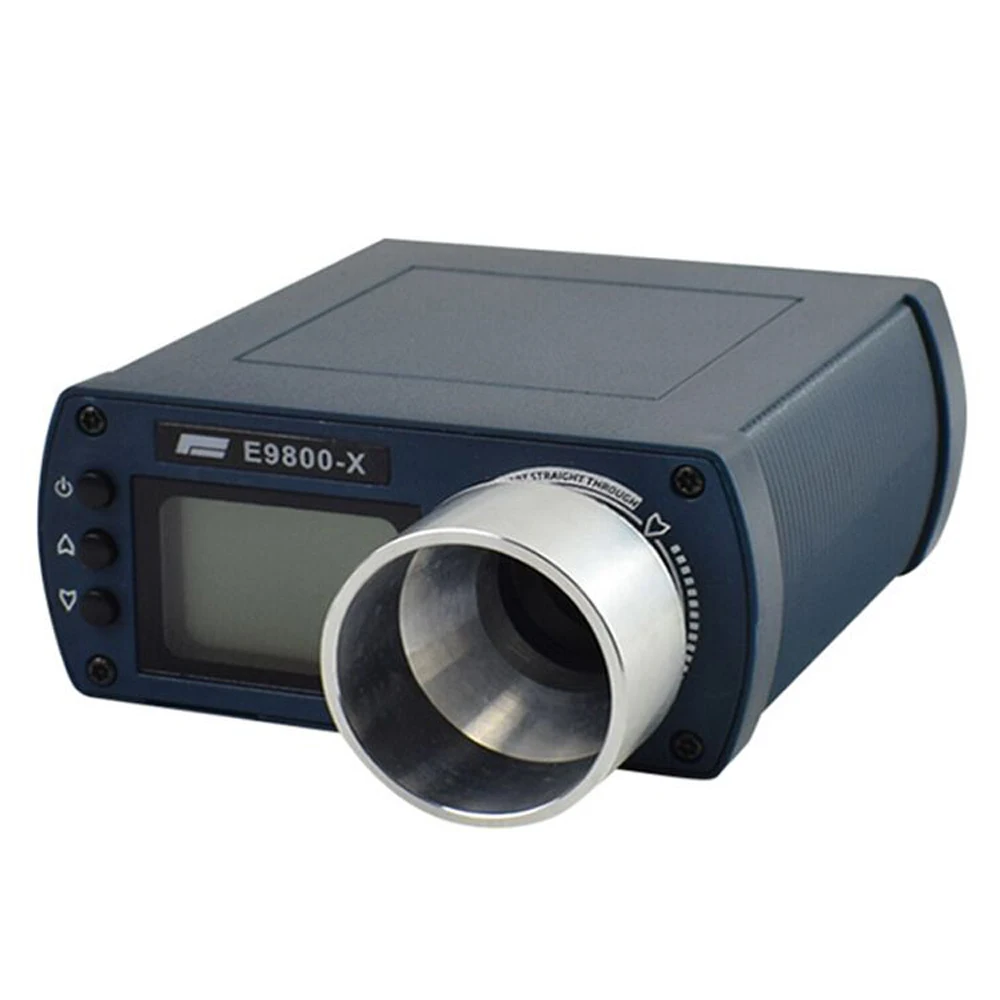

E9800-X Chronograph


Choose an option
Choose an option
SKU: 4001154420367 Categories: , Tag:


  • Origin: CN(Origin)
  • Model Number: E9800-X Speed Tester
  • Model Number: E9800-X
E9800-X accurate multifunctional shooting chronograph, this instrument is designed to test the firing speed of devices, the muzzle velocity and the shooting distance.

Double units display of m/s, FPS, J, J/c㎡, r/m, r/s.
1/4″ standard adapter interface for tripod mount.
LCD screen with back light can clearly display testing data in day and night.
Battery status display, free to set energy saving mode and low power automatically powers off.
25mm aluminum flared testing caliber, to make a stable testing and convenient to put object in.
Built in high-sensitive testing sensor for adapting to circumstances in different brightnesses.
The instrument is designed to test the firing speed of devices, the muzzle velocity and the shooting distance.
ABS durability body, light weight and portable to carry outside, handheld device.
Multifunctional testing results in firing speed, muzzle velocity and shooting distance.
Automatic errors scanning system works at the every beginning of turning it on, to ensure the accuracy of each testing.
6 groups of objects setting and 30 groups of calculating data in memory to meet your various testing requirements.

Color: black, tan, navy blue (optional)
Material: alloy, p-lastic, LCD Display
Model: E9800-X
Measurement Accuracy: 0.1mm
Firing Speed: 0-3600 b/minute(0-60 b/second)
Muzzle Velocity: 15-800 meters/second(50-2600 feet/second)
Firing Energy: 0-500J
1000mm High Firing Horizontal Range: 0-400 meters(0-1250 feet)
Accuracy: errors less than 1.3%
Voltage: DC 4.5V
Working Temperature: -10° – 50°
Battery: 3 * AAA battery(not included)
1/4″ standard tripod interface

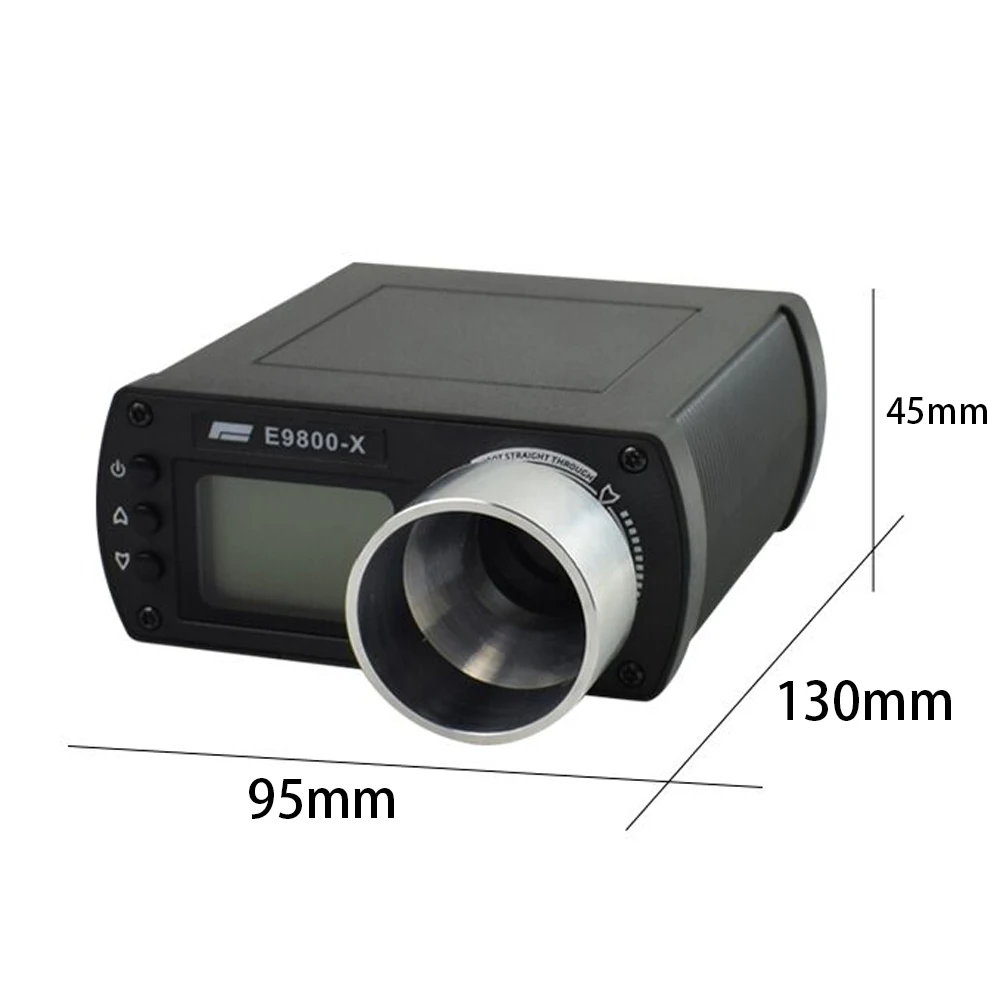

Item Size: 95 * 93 * 39mm / 3.74 * 3.66 * 1.54in
Package Size: 150 * 130 * 70mm / 5.91 * 5.12 * 2.76in
Item Weight: 220g / 7.76ounce
Package Weight: 300g / 10.58ounce

The testing must be carried on under a safe environment to avert yourself and others from hurting by the shooting.
While testing, you’d better use an adapter cap for the shooting caliber, so as to avert mistaken shooting to the panel.
Please do not use it in the outdoor conditions of rain or heavy dusts, the device might be damaged and make an inaccurate testing.
Please avert: testing of kinetics energy above 100J, or if a high kinetics energy bumps into the caliber.
Self-test display C10/20/30, C11/21/31, one of them is not OK(ERROR), sensors need to be cleaned before test.

Package List:
1 * Chronoscope
1 * Manual
