CEM BX-350 BX-500 Infrared High Precision Blackbody Furnace,

R24492,00R27692,00

BX-350
BX-350
BX-500
BX-500
Clear
SKU: 1005003171920973 Categories: , , Tags: , ,

Description

  • BX-350 BX-500 Infrared Calibrator
  • Certification: CE
  • Origin: CN(Origin)
  • Model Number: BX-350 BX-500
  • Target Emissivity: 0.95

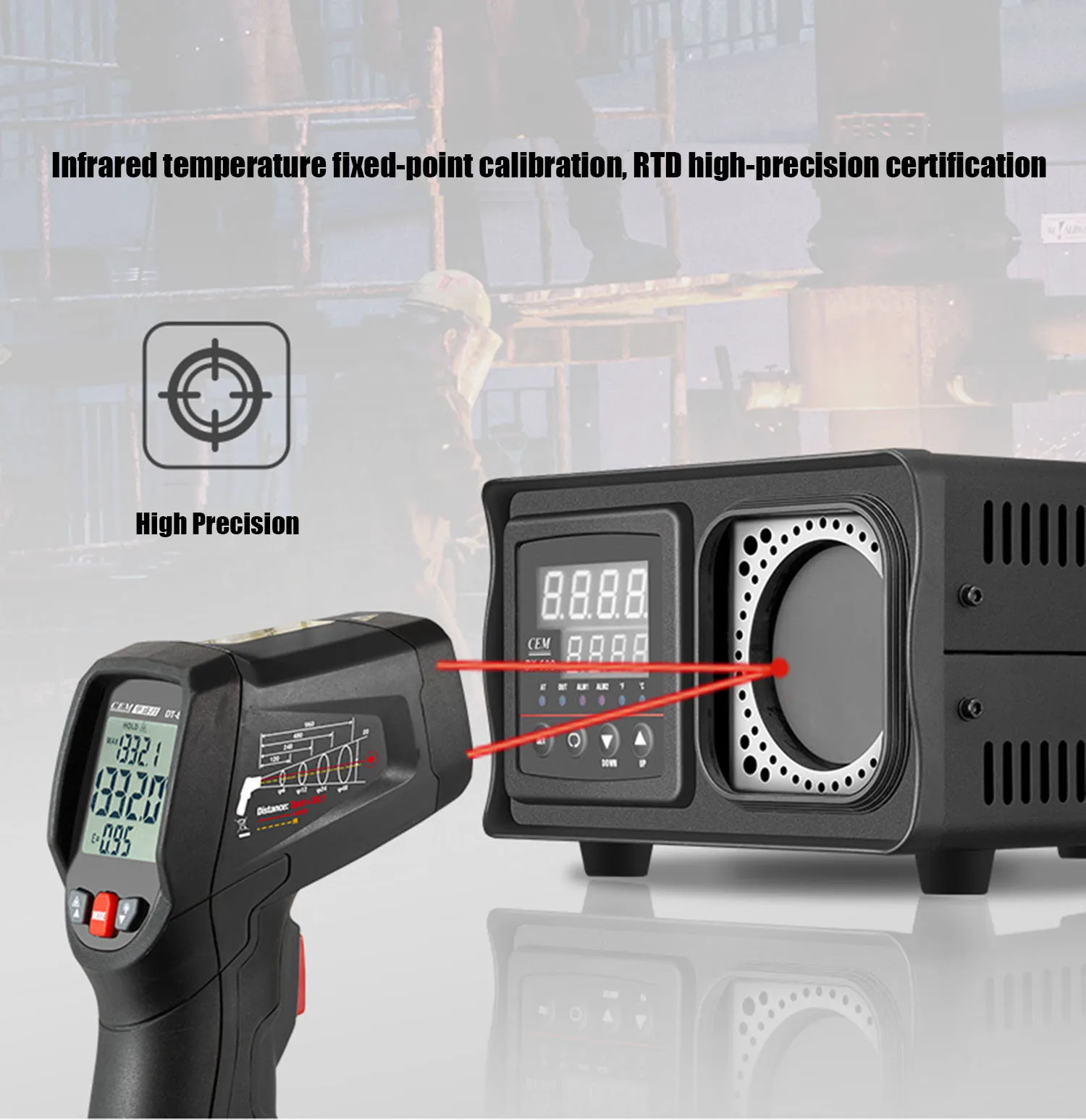

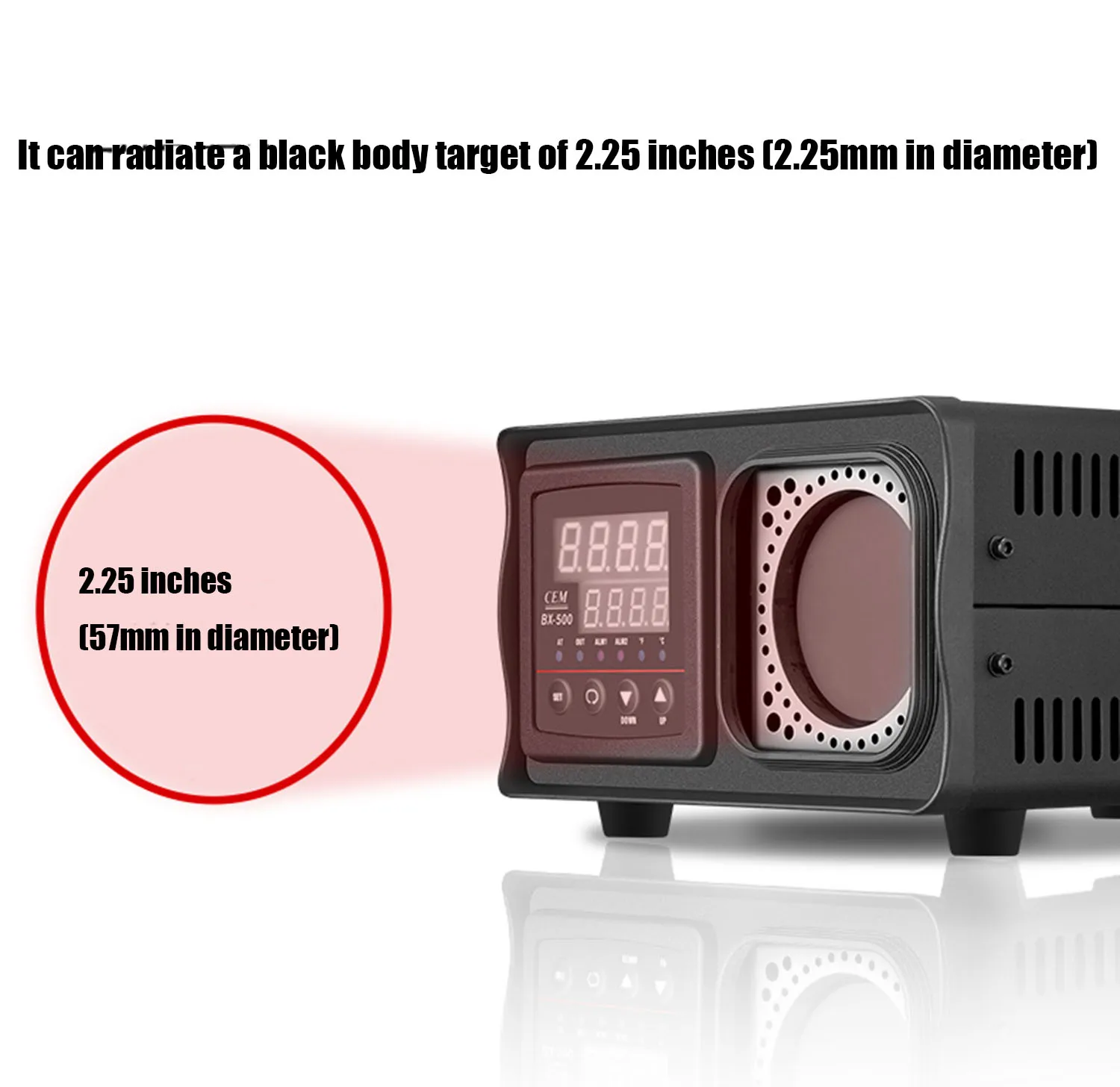

Whether you’re using in-line or handheld infrared pyrometers, you need a high performance calibration standard to verify accuracy. Portable IR Calibrator provides a stable blackbody target for calibrating non-contact IR thermometers up to 500oC (BX-500). The portable IR calibrator features a large temperature controlled blackbody target with a diameter of 2.25″ (57 mm), which offers a wide field of view area for optical variations in IR thermometers. With an emissivity of 0.95, the isothermal target can be controlled in set-point increments of 0.1° from 50oC to 500oC  (BX-500) For even higher precision, a contact calibration well is located directly behind the blackbody surface. Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of  ±0.1oC can be achieved.



Specifications

BX-350

BX-500

BXC-15

Temperature Range

50oC ~ 350oC/ 122oF ~ 662oF

50oC ~ 500oC/ 122oF ~ 932oF

-15oC ~ 120oC/5oF ~ 248oF

Accuracy

±0.5oC @ 100oC/ (±1.0oF @ 212oF)

±0.5oC @ 100oC/ (±1.0oF @ 212oF)

±0.40°C at -15 to 0°C

±0.50°C at 0 to 100°C

±0.55°C at 100 to 120°C

±1.2oC @ 350oC/ (±2.4oF @ 662oF)

±1.8oC @ 500oC/ (±3.6oF @ 932oF)

Stability

±0.1oC @ 100oC/ (±0.2oF @ 212oF)

±0.1oC @ 100oC/ (±0.2oF @212oF)

±0.1oC @ 100oC/ (±0.2oF @ 212oF)

±0.2oC @ 350oC/ (±0.4oF @ 662oF)

±0.3oC @ 500oC/ (±0.6oF @ 932oF)

Target size

2.25” (57mm)

2.25” (57mm)

3.26” (83x83mm)

Target Emissivity

0.95

0.95

0.95



Additional information

Color

BX-350, BX-500
